Young Shin ZENITH – Model 185 Flatbed Diecutter

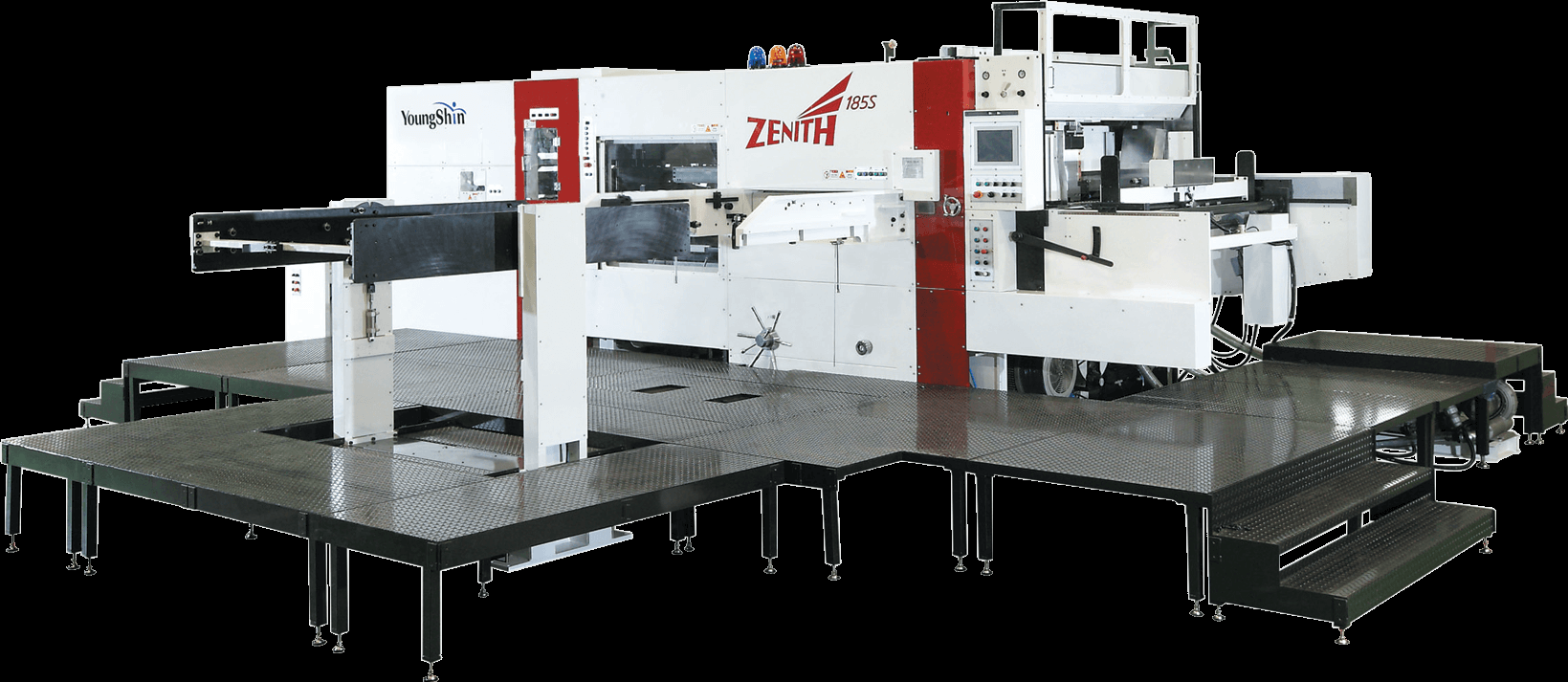

The Young Shin Zenith 185 premier flatbed diecutter series is available in two formats. The Zenith 185S that accommodates sizes up to 72.83” x 44.09” and the Zenith 185SL that runs substrates from 72.83” x 51.15”. These premier automatic diecutters showcase Young Shin’s dedication to quality, innovation and superior output productivity. The Zenith series allows for easy feeding of warped sheets due to its exceptionally strong and well-designed bottom suction device. Powerful cutting pressure is delivered via the precision knuckle system. Full stripping is achieved with the gripper edge removal device incorporated within the Zenith series. The innovative upper stripping frame allows for rapid order change with output delivered via the diecutter’s non-stop blue top plastic belting system.

Download PDF Floor Plan



Specification Zenith 185S Zenith 185SL
Maximum Sheet Size 72.83” x 44.09” 72.83” x 51.15”
Minimum Sheet Size 23.62” x 19.68” 23.62” x 19.68”
Inside Chase 74.80” x 45.27” 74.80” x 50.19”
Minimum Gripper Margin 0.59” 0.59”
Cutting Pressure 440 US tons 440 US tons
Sheet Thickness Corrugated Board (E, B, A, AB Flute) :0.05” ~ 0.43” Corrugated Board (E, B, A, AB Flute) :0.05” ~ 0.43”
Maximum Speed 6000 sph 5500 sph
Required Power 90 amps 90 amps
Total Weight 58 US tons 58 US tons

Sheet Transfer

GRIPPER

Maximizing the productivity of thin sheets utilizing a precise gripper bite.

Feeding Section

FEEDING SECTION

Precise feeding of board by suction device. Automatic setting of side joggers on touch screen.

Touch Screen

TOUCH SCREEN

Clear and simple readings ensure quick problem resolution. Operator-friendly controls allow easy adjustments. Machine position read out.

Die-Cutting Section

DIECUTTING SECTION

Form can be changed in rapid timeframe. Window automatically opens and closes for operator ease. Knuckle system utilized for maximum cutting pressure. Center line system for quick change order. Air floating device for cutting plate.

Pre Make-Ready Table

PRE MAKE-READY TABLE

Pre make-ready table for die chase. Allows operator to set up the next job while the current job is running. Increases overall productivity and continuity of operation.

Stripping Section

STRIPPING SECTION

Center line system for quick set ups. Triple action stripping (male, female and lower stripping). Innovative upper stripping frame for quick order change.

Gripper Edge Removal

GRIPPER EDGE REMOVAL DEVICE

Full stripping achieved with gripper edge removal device. Discharging gripper edge by auto conveyor.

delivery

DELIVERY SECTION

Automatic counter ensures batch delivery. Non-stop delivery available by roller conveyor system. Side and back guides for perfect stacking. Automatic setting of side joggers on touch screen. Optional high-pile and batch delivery systems.
