Young Shin MERIDIAN – Models 170 and 185 Flatbed Diecutters

The Young Shin Meridian 170S and 185S flatbed diecutters have been specifically designed and engineered to masterfully address the requirements of tight registration. With an economical price point, the Meridian series incorporates advanced productivity tools such as a pre make-ready table (chase turner) and high-pile batch delivery. The Meridian’s spike-driven technology allows for the processing of intricate diecutting requirements. Without sacrificing speed or quality, the Meridian advances a low cost of ownership with the advantages of a high-production diecutter.

Download PDF Floor Plan
Specification MERIDIAN 170S MERIDIAN 185S
Maximum Sheet Size 66.92” x 47.24” 72.83” x 47.24”
Minimum Sheet Size 23.62” x 19.68” 23.62” x 19.68”
Inside Chase 68.89” x 48.18” 74.80” x 48.18”
Minimum Gripper Margin 0.59” 0.59”
Cutting Pressure 440 US tons 440 US tons
Sheet Thickness Corrugated Board (E, B, A, AB Flute) :0.05” ~ 0.43” Corrugated Board (E, B, A, AB Flute) :0.05” ~ 0.43”
Maximum Speed 4500 sph 3600 sph
Required Power 64 amps 80 amps
Total Weight 34 US tons 36 US tons

Sheet Transfer

SHEET TRANSFER STYLE (SPIKE)

Efficient sheet-transfer of warped thick sheet by spike style.

Feeding Section

FEEDING SECTION

Precise feeding of board by suction device. Motorized feeder settings (inlet, side and rear).

Touch Screen

TOUCH SCREEN

Clear and simple readings ensure quick fault finding. Operator-friendly controls for easy adjustments. Machine position read out.

Die-Cutting Section

DIE CUTTING SECTION

Form can be changed in a very short timeframe. Soft plate system is available. Knuckle system applies maximum cutting pressure. Center line system used for quick order change.

Stripping Section

STRIPPING SECTION

Center line is utilized for rapid set ups. Triple action stripping (upper, middle and bottom) is employed. New style upper stripping frame allows for quick order changes.

Gripper Edge Removal

GRIPPER EDGE REMOVAL DEVICE

Full stripping is achieved with the unit’s integrated gripper edge removal device. Discharging gripper edge by auto conveyor.

delivery

DELIVERY SYSTEM

An automatic counter ensures batch delivery. Non-stop delivery is available via the roller conveyor system. Side and back guides provide perfect stacking.

Download PDF Brochure

Young Shin logo

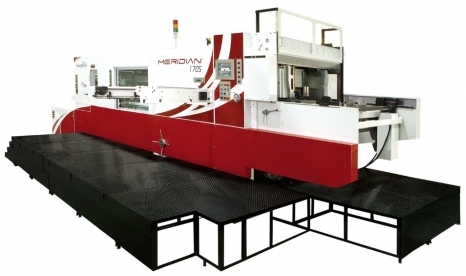

MERIDIAN170S_PHOTO

Young Shin MERIDIAN – Models 170S and 185S
