STOCK S109D-57Q

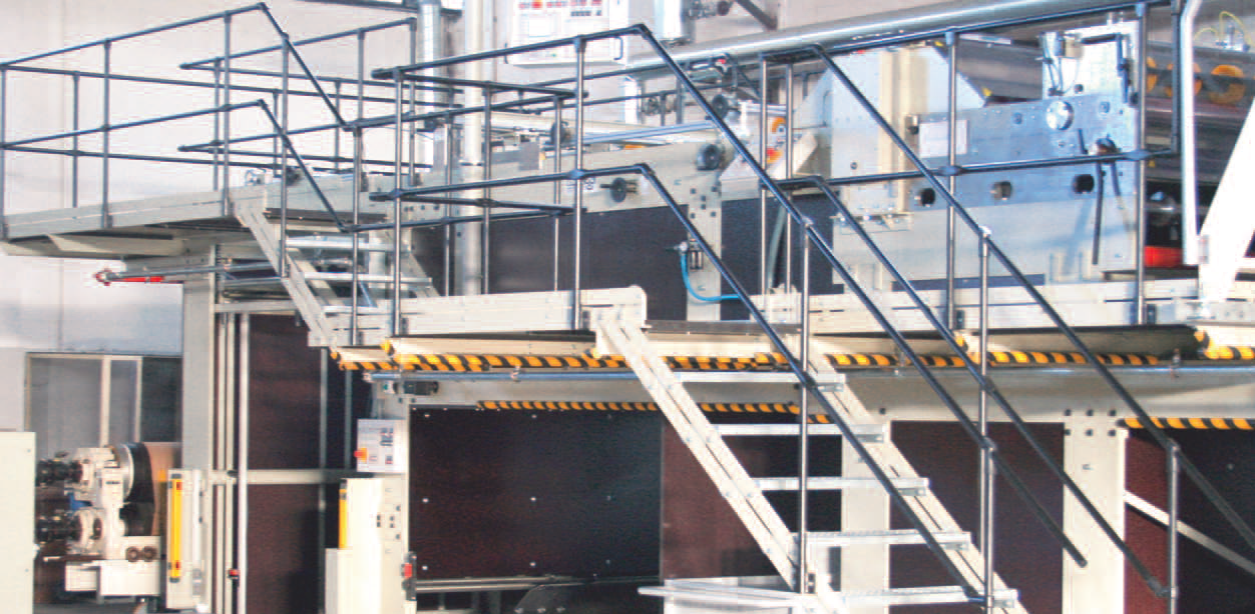

The STOCK Model S109D-57Q is an automatic rotary knife sheeter and stacking system specifically designed for single face corrugated. This German-engineered system has been developed with a strong emphasis placed on combining direct drive technology with the highest quality standards of engineering technology. The sheeter can be either in-line with a corrugator or off-line with roll single face stock. The STOCK Model S109D-57Q processes a web of single face corrugated, slits and trims it, cuts it, shingles and conveys the sheets to the automatic non-stop down-stacker. The sheeter has been comprehensively designed for cutting single face corrugated as well as solid board up to 0.0233”.

Download PDF Floor Plan
Working Reel Width: 59”, 65”, 72”, 78 ¾”
Maximum Linear Web Speed: 150 meters per minute
Material: Single face corrugated board b-flute, e-flute, f-flute, g-flute, and chipboard up to 0.0233”
Operational Efficiencies: High accuracy combined with speed featuring ease of operation, minimum maintenance and quick installation.
Knife Cylinders: Two rotary knife cylinders that are direct driven are incorporated. The servo drive is directly connected to the knife cylinder.
Knife Set-up: The unit’s knife set-up is orchestrated with microprocessor controls that eliminate waste and allow tight cutting accuracy.
Slitting Knives: The Model S109D-57Q is equipped with 3 slitting knives (pneumatic knife holders) to affect a longitudinal shear cut.
Sheet Stacking: An advanced fully automatic sheet stacking system consisting of a shingling unit as well as an automatic non-stop down stacker is incorporated for accurate sheet stacking to a pallet.
In-line Production: For in-line production, a mandatory dancer roll system for synchronizing both machines is required.
